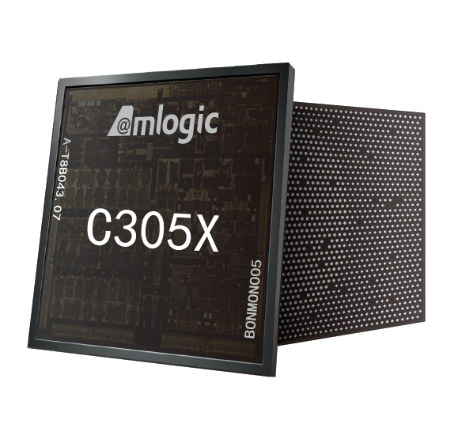

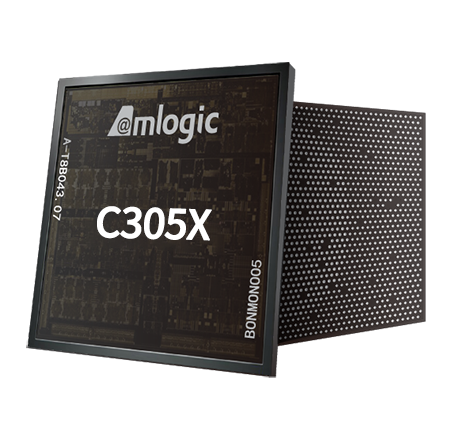

C305X

Applications Solution CAMERA,AIOT

Process 11nm

CPU 2x Cortex-A35

NPU 2 Tops

Memory 32-bit DDR3(L)/DDR4 &LPDDR4 SDRAM

Storage EMMC, SLC Nand, SPI Nor flash, SPI Nand flash

Video Processing 5M@30fps + 1080P@30fps H.264/H.265 encoder

ISP 3A, 3DNR, LSC, HDR, WDR, GDC, Auto Capture

Video Interface MIP-CSI 4-lane
2-channel VI

Audio Interfaces 2x ADC, 2Ch PDM, Built-in 2x DAC, 2x I2S

Video CODEC Enc: 5M@30fps + 1080P@30fps H.264/H.265

DSP HiFi 4 audio DSP
