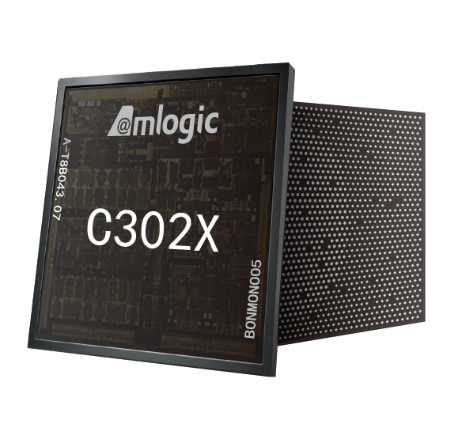

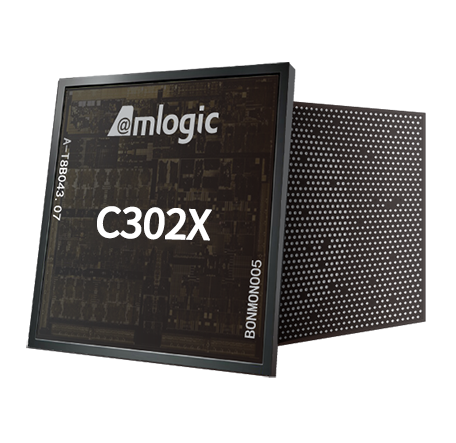

C302X

Applications Solution CAMERA,AIOT

Process 12nm

CPU Dual ARM Cortex-A35

NPU 1 Tops

Memory Sip 16-bit 128/256MB DDR3

Storage eMMC 5.1, SLC NAND Flash, SPI NOR Flash, SPI NAND Flash

Video Processing 5M@30fps+1920x1080@30fps+ 720p@30fps​ H.264/H.265​ encoding

ISP Third Generation ISP Engine, supports 5Mp@30fps HDR, supports Dewarp​​

Video Interface MIPI-CSI 4 lanes​， Support 2 Camera Input

Video Output BT.656 output​, MIPI-DSI

Audio Interfaces 1x ADC, 2x PDM, 1x DAC, 2x TDM/I2S

Video CODEC Enc: 5M@30fps+1920x1080@30fps+ 720p@30fps​ H.264/H.265
