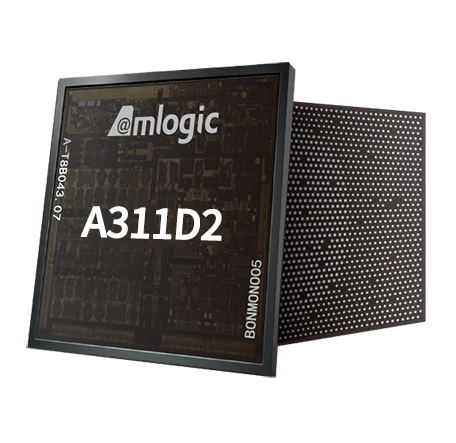

A311D2

Applications Solution STB,AIOT,LARGE PANEL,AUDIO

Process 12nm

CPU 4x A73 + 4x A53

GPU ARM Mali-G52 MC4

NPU 3.2 TOPS

Memory DDR4 3200​;LP4/LP4x 4266

Storage eMMC 5.1

Video CODEC Dec:H.264 4K30​;H.265/VP9/AV1/AVS2 8K24​;Enc:H.264/H.265 4K50

DSP HiFi 5 x2

Display HDMI2.1@4K60 3xTX & 1xRX​;eDP1.4 2x4lanes @2.5K60 ​;VX1 2x8lanes @4K60​;MIPI DSI-2 2x4 lanes @ 2x FHD60​;3x LVDS@FHD60

USB/PCI-e 1xPCIe2.0​;1xUSB3.0 DRD​;1xUSB2.0​;1xSDIO3.0

ISP 16M

Ethernet 1x GMAC + 10/100M PHY

Camera Interface 2xMIPI-CSI D-PHY each 4 lanes
