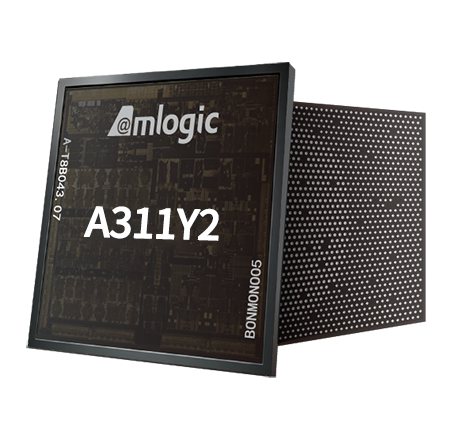

A311Y2

Applications Solution AIOT

Process 6nm

CPU 4x A510

GPU ARM Mali-G310 V5​

NPU 4TOPS

Memory LP4/LP4x 4266​;LP5 4266

Storage eMMC 5.1

Video CODEC Dec:H.264 4K60​;H.265/VP9/AVS3 4K120;Enc:H.264/H.265 4K60

DSP HiFi 5

Display HDMI2.1@4K60​;MIPI DSI-2 4 lanes @ FHD60

USB/PCI-e 1xPCIe2.0​;1xUSB3.0 Host​;1xUSB2.0 DRD​;1xSDIO3.0

Ethernet 1x GMAC + 10/100M PHY

Camera Interface 1xMIPI-CSI D-PHY 1x4 lanes
