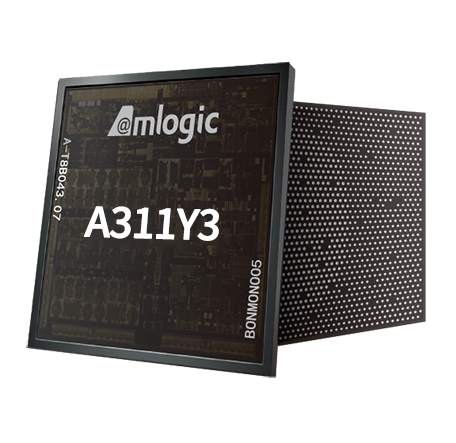

A311Y3

Applications Solution STB,AUDIO,LARGE PANEL,AIOT

Process 6nm

CPU 2 x A78 + 6 x A55

GPU ARM Mali-G625 MC1 ​

NPU 8 TOPS

Memory LP4/LP4x 4266​;LP5/5x 6400

Storage eMMC 5.1

Video CODEC Dec:H.264 4K60​ H.265/AV1/VP9/AVS3 4K120;Enc:H.264/H.265 4K60

DSP HiFi 5

Display Max. 4K60+2.5K60 dual display​;HDMI2.1@4K60 TX&RX​;DP1.4 4lanes @4K60​;eDP1.4 4lanes @4K60 ​;VX1 8lanes @4K60​;MIPI DSI-2 2x4 lanes @2.5K60​;Dual-link LVDS@FHD60

USB/PCI-e 1xPCIe3.0 x2 ​1xUSB3.0 in USB C with DP Alt-mode;1xPCIe2.1/USB3.0 combo​;2xUSB2.0​;1xSDIO3.0

ISP 16M

Ethernet 1x 2.5GMAC +1xGMAC

Video Input H.264/H.265 4K60

Video Output H.264 4K60​ H.265/AV1/VP9/AVS3 4K120

Camera Interface 2xMIPI-CSI D-PHY, each 2x2, 1x4 lanes​
