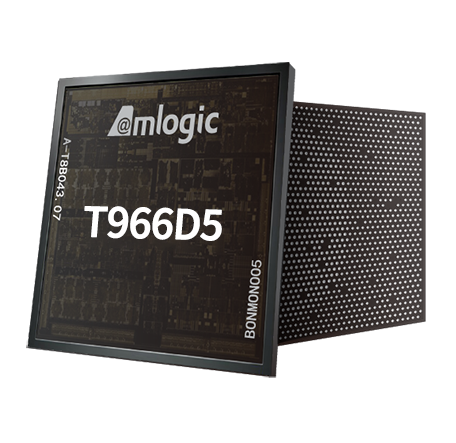

T966D5

Applications Solution TV

Process 12nm

CPU Penta-Core Cortex-A55​

GPU Mali-G52 MC1

Memory DDR4-3200 AMFC memory compression

Storage eMMC 5.1 w/ HWCQ & inline encryption, SLC NAND​

Video CODEC Dec:4Kp75 10-bit VVC/AV1/H.265/VP9/LCEVC, 4Kp30 H.264; Enc:​1080p30 H.264

HDR DV(with IQ), HDR10+/10, HLG/+, HLG, Prime​

PQ Engine 13-th TruLife image engine Pro

Ethernet 10/100/1000M MAC + 10/100M PHY​

Audio Interface Audio ADC, PDM x4, I2S (8 in & 8 out), SPDIF, PCM, built-in HW EQ/DRC​

Video Input HDMI 2.1 x2 w/ 4K144/165,eARC, VRR, ALLM, QMS & QFT, HDMI 2.1 x2 w/ 4K60, CVBS x1, TS in​

Video Output V-by-1, LVDS, CVBS, 4K TCON

Local Dimming Yes

DTV/ATV DTMB, DVB-C, NTSC, PAL, SECAM ​
