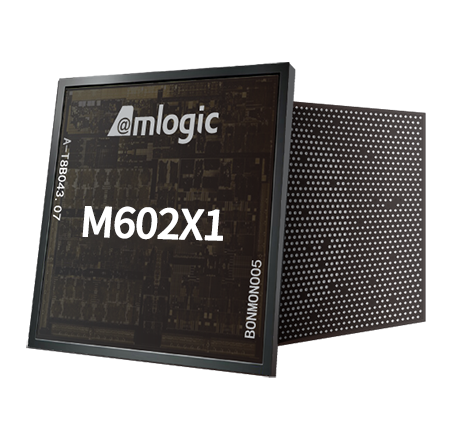

M602X1

Applications Solution MONITOR

Process 22nm

CPU RISC-V 32bit

RX 3D, HDMI2.1 TMDS, DP1.4 HBR2, HDCP1.4/2.3

TX LVDS 4ports

Panel FHD@240Hz, QHD@100Hz

VPU HDR10, Free-Sync, MPRT

Peripheral Interface SAR-ADC, UART, I2C, PWM, GPIO

Audio Interface Line out L/R, Earphone L/R, SPDIF

Power 3.3v/0.9v, support low power standby
