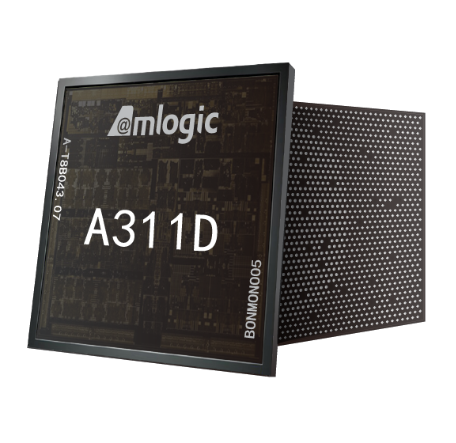

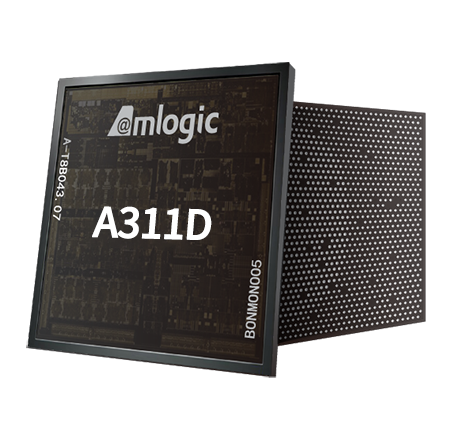

A311D

Applications Solution Smart Vision, Smart Home, Digital Signage,

Process 12nm

CPU Quad-Core ARM Cortex-A73 +Dual-core ARM Cortex-A53

GPU ARM Mali-G52 MP4 (6EE) OpenGL ES 3.2, Vulkan 1.1 and OpenCL 2.0

Memory 32-bit DDR3/3L/4, LPDDR3/4

Storage eMMC 5.0, NAND Flash, SPI NOR/NAND, SD

Video Processing 4Kp75 10bit H.265, VP9, AVS2 decoding 4Kp30 H.264 decoding 1080p60 H.265, 1080p30 H.264 encoding

HDR HDR10, HDR10+, HLG, Dolby Vision, TCH PRIME

Ethernet 10/100/1000M MAC + 10/100M PHY

USB/PCI-e 1x USB2 + 1x USB3 / (1x PCIe Gen-2+1x USB2.0)

Audio Interface Stereo DACs, SPDIF-in & out,
8Ch PDM, Multi-channel I2S in & out

Video Output 4Kp60 HDMI 2.1, CVBS, 4-lane MIPI-DSI

DVB 2x TS in, ISO7816

Applications Digital signage, Smart home, Video Conference, Edge AI server

Video Input 4-lane MIPI-CSI with 8Mpix HDR ISP
