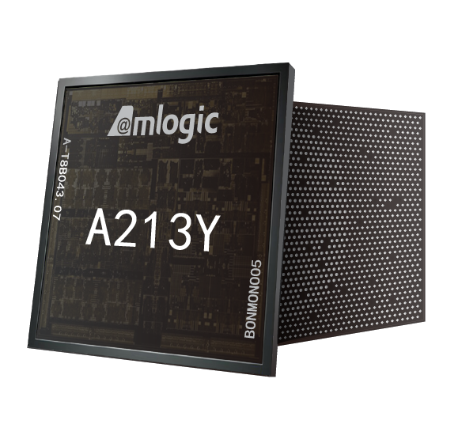

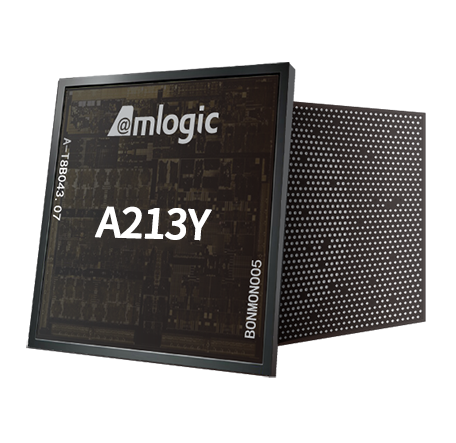

A213Y

Applications Solution

Process 28nm

CPU Quad-Core ARM Cortex A5

GPU Quad-Core ARM Mali-G450

Memory 16/32-bit DDR3/3L, LPDDR2/3

Storage eMMC 4.4/4.5, SLC/MLC/TLC NAND Flash, SPI NOR/NAND Flash, SD

Video Processing 1080p60 H.265, H.264 decoding, 1080p30 H.264 encoding

Audio Interface 2-channel I2S/PCM input & output

Video Output HDMI 1.4b up to 1200P60, Single channel LVDS up to 1366x768, 4-lane MIPI-DSI up to 1920x1200

Peripheral Interface USB2.0 x 2

Applicable Solutions Smart Display applications
