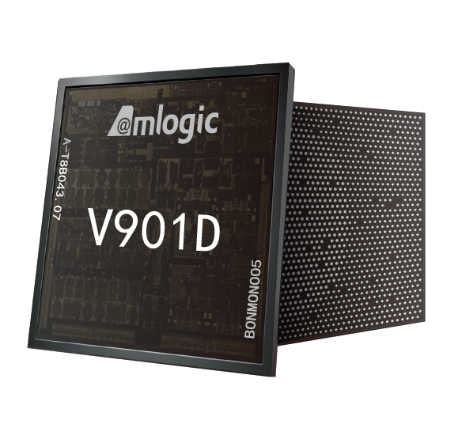

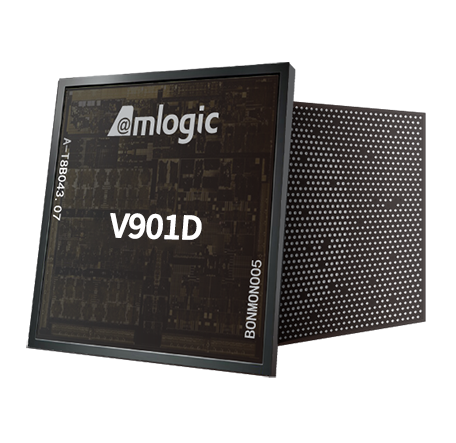

V901D

Applications Solution

Process 12nm

CPU Quad-Core Cortex-A55

GPU ARM Mali-G31 MP2

Memory 32-bit DDR3/4, LPDDR3/4

Storage eMMC 5.0, SLC NAND

Video Processing 4Kp60 10bit: AV1/H.265/VP9 P-2/AVS2, 4Kp30: H.264 decoding 1080p30 H.264 encoding

HDR Dolby Vision, HDR10/10+,HLG, Prime HDR

Ethernet 10/100/1000MAC w/ AVB + 10/100 PHY

USB/PCI-e 1x USB2(OTG) + 1x USB3 or 2x USB2(OTG,HOST) + 1x PCIe-2

Audio Interface Stereo DACs, SPDIF-in & out, 8Ch PDM, I2S-in & out

Video Output V-by-1, LVDS, CVBS, 4K TCON

Voice & Audio Processing VAD, EQ/DRC, eARC, HiFi4 DSP

Video Input HDMI 2.1 x3 w/ EMP, ALLM, CVBS x2

PQ Engine 10-th TruLife image engine
