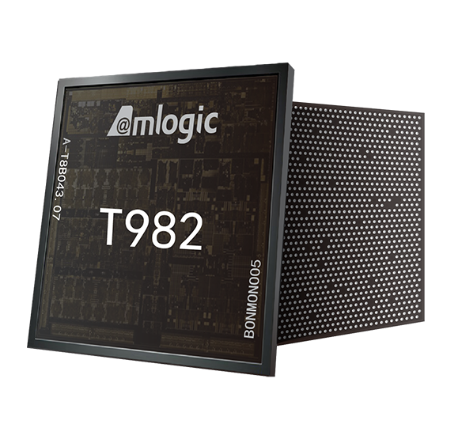

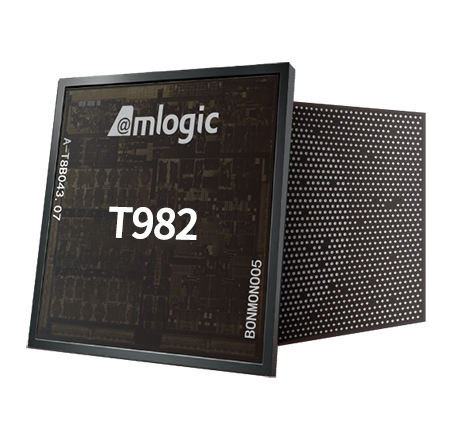

T982

Applications Solution Smart TV, Smart Vision,

Process 12nm

CPU Quad-Core ARM Cortex-A55

GPU ARM Mali-G52 MP2 OpenGL ES 3.2, Vulkan 1.1 and OpenCL 2.0

Memory 64-bit DDR3/4

Storage eMMC 5.0, SLC NAND Flash

Video Processing 8Kp30 10bit H.265/VP9 decoding 4Kp60 AVS2 decoding 4Kp30 H.264 decoding

HDR HDR10+, HDR10, HLG, Dolby Vision

Ethernet 10/100/1000M MAC + 10/100M PHY

USB/PCI-e 3x USB 2.0，1x USB 3.0 / (PCIe Gen-2+USB2.0)

Audio Interface Stereo CODEC, SPDIF-in & out, 8Ch PDM, Multi-channel I2S in & out

Video Output V-by-1, LVDS, CVBS, 4K TCON

Voice & Audio Processing VAD, ASRC/EQ/DRC

Video Input 4Kp60 HDMI 2.1 x3, CVBS x2

DTV/ATV DTMB/DVB-C, NTSC, PAL, SECAM

PQ Engine 11-th TruLife image engine

Local Dimming Support multi-zone
