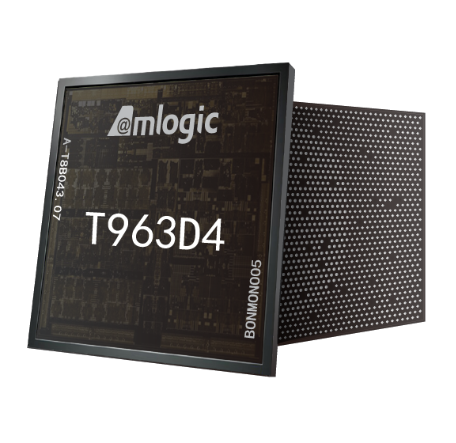

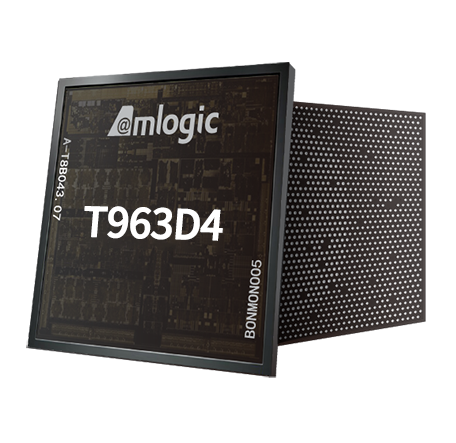

T963D4

Applications Solution TV

Process 12nm

CPU Quad-Core ARM Cortex A55

GPU ARM Mali-G57MC1

Memory 48-bit DDR3/3L/4

Storage eMMC 5.1, SLC NAND Flash

HDR Dolby Vision, HDR10+, HDR10, Prime, HLG

PQ Engine 11th Pro Generation Advanced Trulife image engine

Ethernet 10/100/1000M MAC+ 10/100M PHY

Peripheral Interface 1x USB 3.0, 2x USB 2.0

Audio Interface Stereo CODEC, PDM x4, SPDIF, PCM, built-in HW EQ/DRC

Voice&Audio Processing VAD, ASRC/EQ/DRC

Video Input HDMI 2.1 x4 w/eARC, VRR, ALLM, QMS & QFT, CVBS x2, TS in

Video Output V-by-1, LVDS, CVBS, 4K TCON

Local Dimming Yes

DTV/ATV DVB-T2/T/S2x/S2/S/C/ATSC/ISDB-T/DTMB, NTSC, PAL, SECAM CI+V1.4/2.0
