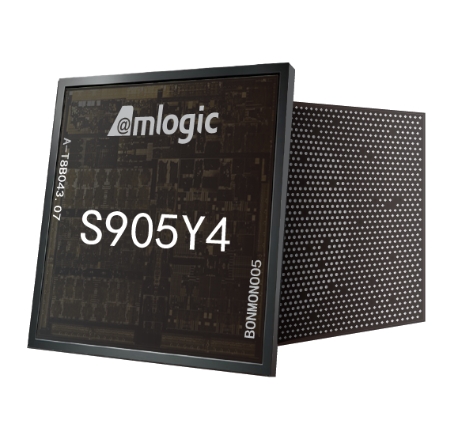

S905Y4

Applications Solution Smart STB,

Process 12nm

CPU Quad-Core ARM Cortex-A35

GPU ARM Mali-G31 MP2 OpenGL ES 3.2, Vulkan 1.1 and OpenCL 2.0

Memory 32-bit DRAM, DDR4, LPDDR4

Storage eMMC 5.0, SLC NAND Flash, SPI NOR/NAND, SD

Video Processing 4Kx2K@60fps 10bit H.265, AV1, VP9, AVS2 decoding 4Kx2K@30fps H.264 decoding

HDR HDR10+, HDR10, HLG HDR, Dolby Vision

Ethernet 10/100 MAC + PHY

USB/PCI-e 2xUSB 2 (1xHost+1xOTG)

Audio Interface Stereo DACs, SPDIF-in&out, eARC, 8Ch PDM, Multi-channel I2S in&out

Video Output 4Kp60 HDMI 2.1a, CVBS

Applications DVB/OTT/IP STB, Smart TV dongle
