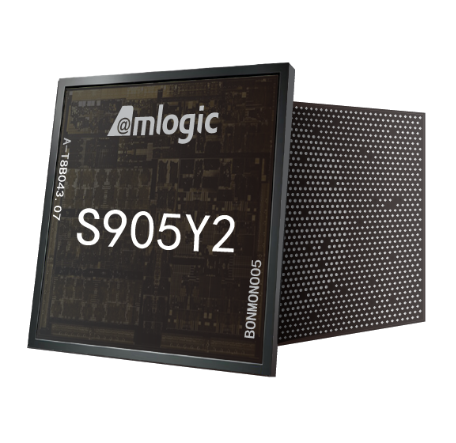

S905Y2

Applications Solution Smart STB,

Process 12nm

CPU Quad-Core ARM Cortex-A53

GPU ARM Mali-G31 MP2
OpenGL ES 3.2, Vulkan 1.1 and OpenCL 2.0

Memory 32-bit DDR3/3L/4, LPDDR3/4

Storage eMMC 5.0, NAND Flash, SPI NOR/NAND, SD

Video Processing 4Kp75 10bit H.265, VP9, AVS2 decoding
4Kp30 H.264 decoding 1080p60 H.265, 1080p30 H.264 encoding

HDR HDR10, HDR10+, HLG, Dolby Vision, TCH PRIME

Ethernet -

USB/PCI-e USB/PCI-e 1x USB2+ 1x USB3 / (1x PCIe Gen-2+1x USB2.0)

Audio Interface Stereo DACs, SPDIF-in & out,
8Ch PDM, Multi-channel I2S in & out

Video Output 4Kp60 HDMI 2.1

DVB 2x TS in, ISO7816

Applications DVB/OTT/IP STB, Smart TV dongle
