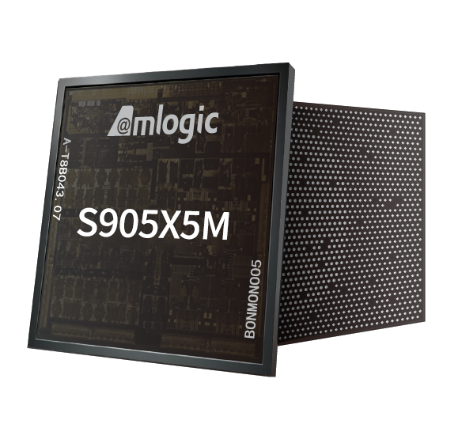

S905X5M

Applications Solution

Process 6nm

CPU Quad-Core Cortex-A55

GPU ARM G310 V2

Memory 16/32-bit DDR4/LPDDR4 up to 4GB

Storage eMMC 5.2 w/ HW CQ & inline encrypt, SLC/QSPI NAND, SD

Video Processing 4Kp75 10bit: AV1,H.265,VP9 P-2,AVS2 4Kp30: H.264 Decoding; 1080p30 H.264 Encoding

HDR HDR10/10+, HLG, Dolby Vision (Opt.), TCH PRIME

Ethernet 10/100/1000 MAC + 10/100 PHY

USB/PCI-e 2x USB2(OTG,HOST), USB-C CC

Video Output HDMI 2.1b 4Kp60 output w. ALLM, eARC, QMS, VRR, QFT, SBTM. CVBS

DVB 2x TS(S) in, ISO7816
