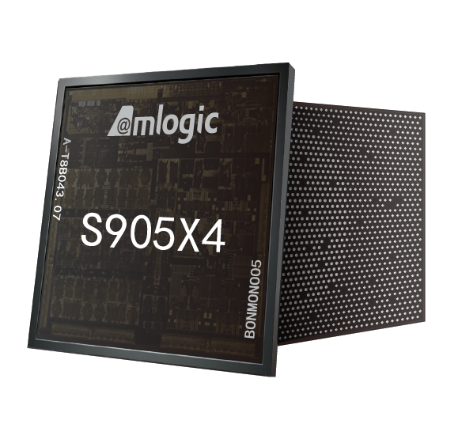

S905X4

Applications Solution Smart STB,

Process 12nm

CPU Quad-Core ARM Cortex-A55

GPU ARM Mali-G31 MP2

Memory 32-bit DDR3/3L/4,LPDDR3/4

Storage eMMC 5.0, NAND Flash, SPI NOR/NAND, SD

Video Processing 4Kp75 10bit: AV1/H.265/VP9 P-2/AVS2, 4Kp30: H.264 decoding 1080p60 H.265, 1080p30 H.264 encoding

HDR HDR10/10+, HLG,Dolby Vision, TCH PRIME

Ethernet 10/100/1000MAC + 10/100 PHY

USB/PCI-e 1x USB2(OTG) + 1x USB3 or 2x USB2(OTG,HOST) + 1x PCIe-2

Audio Interface Stereo DACs, SPDIF-in & out, 8Ch PDM, 12+Ch I2S in, 12+ch I2S out

Video Output 4Kp60 HDMI 2.1, CVBS

DVB 4xTS in, ISO7816

Voice & Audio Processing VAD, ASRC/EQ/DRC, eARC, HiFi4 DSP
