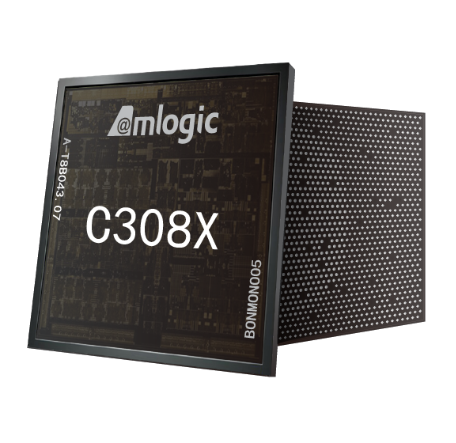

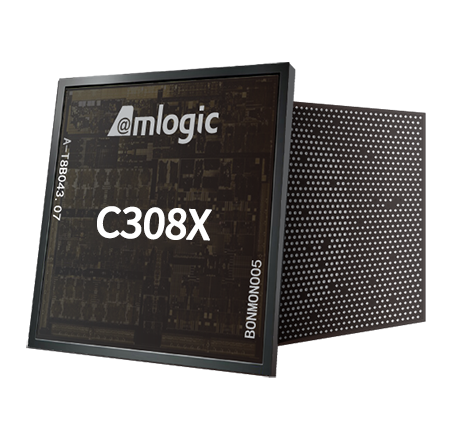

C308X

Applications Solution AIOT,CAMERA

Process 12nm

CPU 2x Cortex-A55

NPU 4 TOPS

Memory 32-bit DDR3(L)/DDR4 &LPDDR4 SDRAM

Storage EMMC, SLC Nand, SPI Nor flash, SPI Nand flash

Video Processing 4K@30fps + 1080P@30fps H.264/H.265 encoding

ISP 3A, 3DNR, LSC,HDR, WDR, GDC, Auto Capture

Video Interface MIP-CSI 4-lane
 2-Channel VI

Audio Interfaces 2x ADC, 4Ch PDM, Built-in 2x DAC, 2x I2S

Video CODEC Enc: 4K@30fps + 1080P@30fps H.264/H.265

DSP Dual-core HiFi-4 Acoustic/Audio DSP
