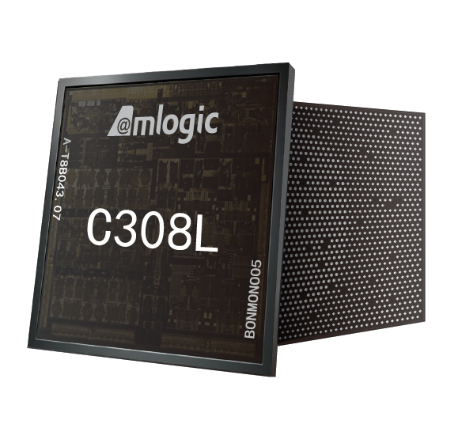

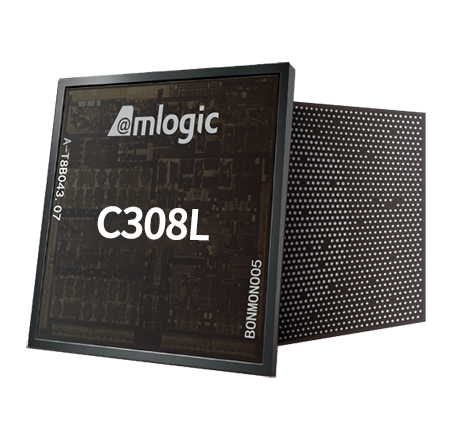

C308L

Applications Solution CAMERA,AIOT

Process 12nm

CPU Dual ARM Cortex-A35

NPU 1 Tops

Memory 32-bit DDR3(L)/DDR4 &LPDDR4

Storage eMMC 5.1, SLC NAND Flash, SPI NOR Flash, SPI NAND Flash

Video Processing 4K@30fps​ H.264/H.265​ encoding

ISP Third Generation ISP Engine, supports for 4K@15fps HDR, supports 4K@30fps SDR, supports Dewarp​

Video Interface MIPI-CSI 4 lanes, support dual-sensor

Video Output RGB656/RGB666​, BT.656/BT.1120 output​, MIPI-DSI

Audio Interfaces 2x ADC, 2x DAC, 2x PDM, 2x TDM/I2S​

Video CODEC Enc:4K@30fps​ H.264/H.265​
