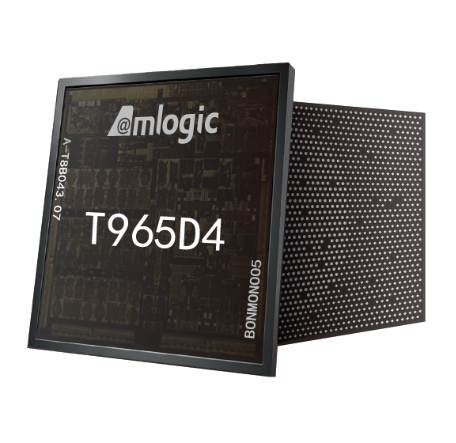

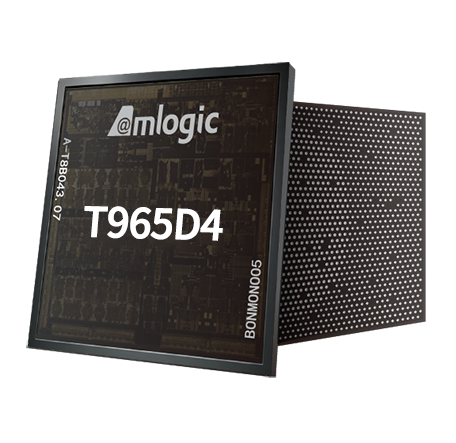

T965D4

Applications Solution Smart TV,

Process 12nm

CPU Quad-Core ARM Cortex-A55

GPU ARM Mali-G52MP2(2EE)

Memory 64-bit DDR3/3L/4

Storage eMMC 5.0, SLC NAND Flash

Video Processing 8Kx4K@30fps+4Kx2K@60fps AV1/H.265/VP9 decoding 4Kx2K@60fps AVS2 decoding 4Kx2K@30fps H.264 decoding 1080@30fps H.264 encoding

HDR Dolby Vision, HDR10+, HDR10, HLG

Ethernet 10/100/1000M MAC+ 10/100M PHY

Audio Interface Stereo CODEC, PDM x8, SPDIF, PCM, built-in HW EQ/DRC

Video Output V-by-1, LVDS, CVBS, 4K TCON

Voice & Audio Processing VAD/ASRC/EQ/DRC

Peripheral Interface 3x USB 2.0, 1x USB 3.0 / (PCIe 2.0x1+USB2.0x1)

Video Input HDMI 2.1 x3 w/eARC, VRR, ALLM, QMS & QFT, CVBS x2, TS in

DTV/ATV DVB-T2/T/S2x/S2/S/C/ATSC/ISDB-T/DTMB, NTSC, PAL, SECAM CI+V1.4/2.0

PQ Engine 11-th TurLife Pro with MEMC60

Local Dimming Yes
