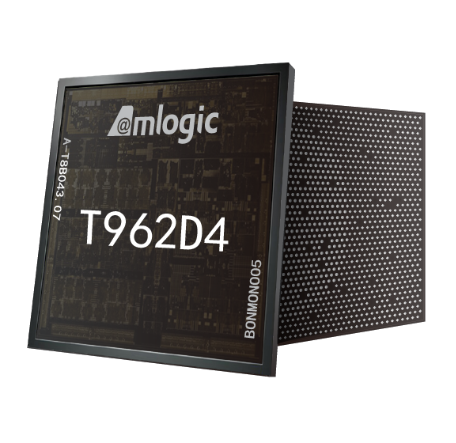

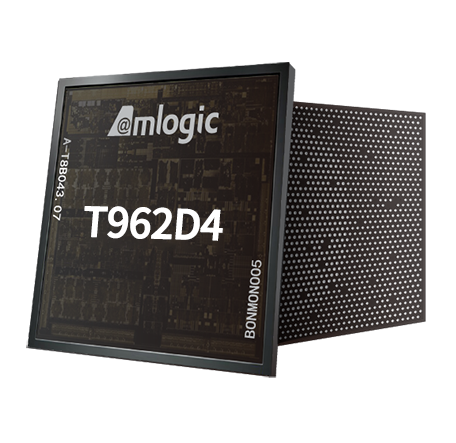

T962D4

Applications Solution Smart TV,

Process 12nm

CPU Quad-Core Cortex-A55

GPU ARM Mali-G31 MP2 OpenGL ES 3.2, Vulkan 1.1 and OpenCL 2.0

Memory 32-bit DDR3/3L/4, DDR2666

Storage eMMC 5.0, SLC NAND Flash

Video Processing 4Kp75 10bit AV1/H.265/VP9 decoding 4Kp60 AVS2 decoding 4Kp30 H.264 decoding

HDR Dolby Vision, HDR10+, HDR10, HLG

Ethernet 10/100/1000M MAC + 10/100M PHY

USB/PCI-e USB 2.0 x3

Audio Interface Stereo CODEC, SPDIF-in & out, 4Ch PDM, 16Ch I2S in&out

Video Output V-by-1, LVDS, CVBS, 4K TCON

Voice & Audio Processing VAD, ASRC/EQ/DRC

Video Input HDMI 2.1 x3 w/ eARC, VRR, ALLM, QMS, CVBS x2

DTV/ATV DVB-T2/T/S2/S/C, ATSC, ISDB-T, NTSC, PAL, SECAM 2x TS in, 1x TS out, CI+1.4/2.0

PQ Engine 11-th TruLife image engine

Local Dimming Support multi-zone
